AHCA (Advanced Heavy Combat Aircraft) concept, 5/5.5/6gen? Su-30MKI replacement? TEDBF 2.0?

Bhartiya Sainik

Regular
Messages
42
Reactions
26
Points
18
Location: India
CAUTION/DISCLAIMER:
- This thread is inspired by global tech evolution, R&D & big jets like Su-3X including Naval variant Su-33.
- On casual forum, there is no need to wait for official govt. or DoD statements.
- Neither global tech evolution waits for lagging countries, nor Discussions for every component to mature & be available.

>Some day upgraded Super-Su-30MKI will need replacement by similar size & weight jet due to technological advancement, requirement of 5th-6th gen. Even after Super-Sukhoi upgrade which is analogous to Su-35-S, the RCS & IRS will be quite high.
>The radars, SAMs, AAMs have improved a lot. The latest ones are made aiming 5th gen jets.
>The frontline jets have to be latest gen/tech to act like spies & snipers, which can be supplemented by previous gen jets following behind.
>When the engine &/or airframe design are inadequate, a new airframe & new/modified components are required then a gen leap occurs, who's R&D takes time in decades, hence EU dumped 5th gen & moved to 6th gen FCAS & GCAP to catch up with USA. That's the answer to how can we make 6gen w/o 5gen.
>Hence AMCA & similar jets also may not have adequate thrust, volume for payload, fuel & advanced equipments, range/endurance. Otherwise AMCA in stealth config w/o any CCMs should be expected to use 4 BVR-AAMs with 100% Pk & then kill any adversary with gun.
>Bharat's attempt to make AMCA is sluggish like LCA, bcoz we couldn't get good engines, or even average engines, by self/import/JV to experiment with prototypes, but we are fine with using average engines on active duty jets.
>Bharat exited PAKFA/FGFA project with Russia due to lack of ToT of Su-57. Now there are speculations to get some as stopgap measure.
>China has good numbers of J-20, will have more of it, & will have derivatives of J-31/35.
>S.Korea producing KF-21 Boramae has population of 51.7 million & around 100,000 sqKm. KF-21 will most likely improve like X-35 became F-35.
>Sweden with area 450,000+ sqKm has population 10.6 million with history of making good jets. They were studying on their 5gen Flygsystem 2020. Later there were talks to join GCAP or FCAS. They may announce some surprise any day.
>Turkey with area 783,000+ sqKm & population 86.2 million had its 1st flight of Kaan.
>Kaan & J-31 can be offered to Pakistan.
>Pakistan & China might attept to make 1-engine PFX to replace JF-17.
>Su-57's local numbers are less & no export orders. Russian Su-30/33/35 might get replaced by Su-57 but Russia may develop another jet to counter Western 6th gen designs but may not share ToT with us.
>We already know an outline of differences b/w 5th & 6th gen features, some of which can overlap.



>An empty 5th gen jet also added weight due to permanent inbuilt sensors, EW antennas, fuel tanks, OBOGS, HXs, decoys, etc.
>An empty 6th gen jet also adds more weight due to inbuilt DEW, more computing, C3 system, variable-cycle engine, longer range missiles, stronger EW, etc.
>Increased stealth also demands sufficient weapons carried internally, higher stand-off launch range, bigger NEZ, higher Pk.
>The NAVY jets are not going to face obsolete SAMs, AAMs, radars. Huge anti-surface weapons cannot fit internally. New gen compact weapons with folding fins are needed which can may not sink a surface vessel but immobilize or handicap it. Stronger landing gears, bigger folding wings may add 10-20% more weight depending upon airframe design. But a common airframe/fuselage design can save lots of money. The current TEDBF design is overall 4.5 gen with some components of 5th gen as per present day technologies, but if a next gen follow-on can be made by 2040s then it would be great. So a N-AHCA will be TEDBF 2.0 supplemented by current design.
>At present people say that NAL, ADA, DRDO don't have enough professionals to handle more than AMCA, LCA, MWF, TEDBF & upgrades of current jets.
>All above points puts pressure on Bharat to develop 5.5gen jet at least with adequate weapons, fuel, in a cost effective way.
>Whether funds are cleared for GTRE or JV or import, engines are need for AMCA, MWF, TEDBF & a future advanced heavy jet.
>ISRO has progressed well. If they can contribute anything like for Variable Cycle Engine, materials, compacting avionics, etc something which ADA, NAL, DRDO would take much more time, then IMO it should be considered.

Since days of T-10 prototype & other jets like MiG-25, F-15, our scientists & engineers might have at least discussed if some day they could also make such a home grown jet. And now IMO the R&D should proceed with whatever we have & can avail bcoz reaching Western quality levels will take decades.

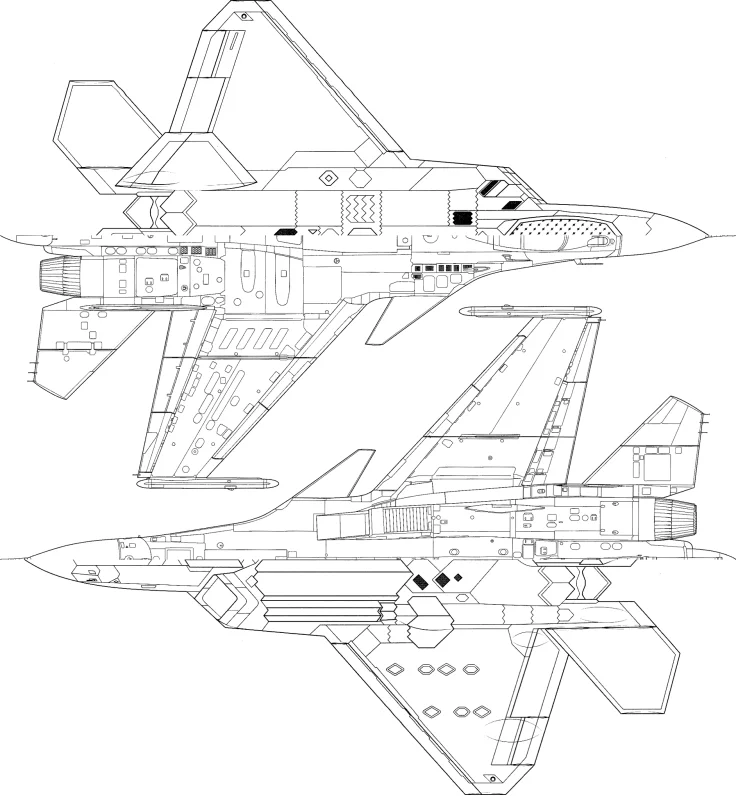

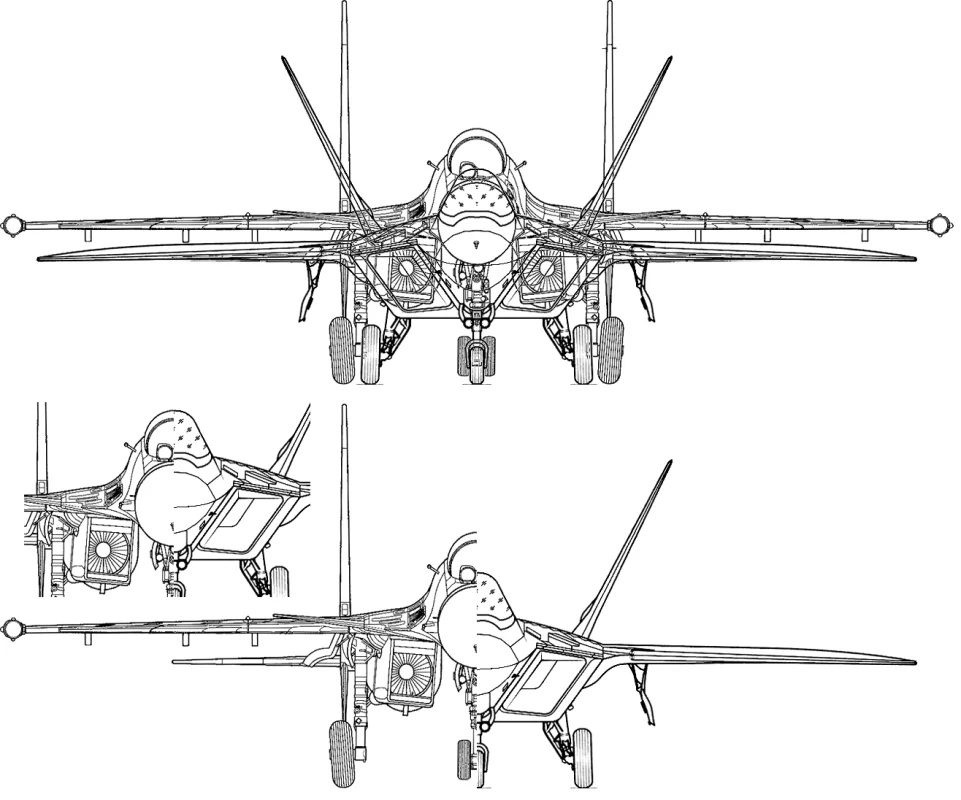

I'm using edited cross-section of F-22, a jet flying well, rather than imaginery 6gen models.
CAUTION - The notional depiction doesn't mean all indicated weapons to be carried internally at once. Otherwise it will become a bomber. But a future customized fighter will need future customized weapons & multiple IWBs (Internal Weapons Bays).

We will try to examine individual aspects like payload, avionics, sensors, airframe, engines including Naval requirements but in new gen ways.



The above picture has been compiled similar to an older one comparing medium weight 1-engine jets of 4.5 generation F-16 & 5th generation F-35.


The size, shape, weight, structure of AHCA would depend on type & number of weapons it would carry.

LEARNING LESSONS FROM 5GEN JETS F-22, F-35, Su-57
New gen jets would require new gen weapons with modified shape & folding fins, perhaps a different attck profile, like F-22 & F-35 will get MAKO, AGM-88E AARGM-ER, Kh-58UShKE, etc.
For example it is not possible or feasible for Su-57 to carry Brahmos like big missile even if its tandem IWBs are joined.

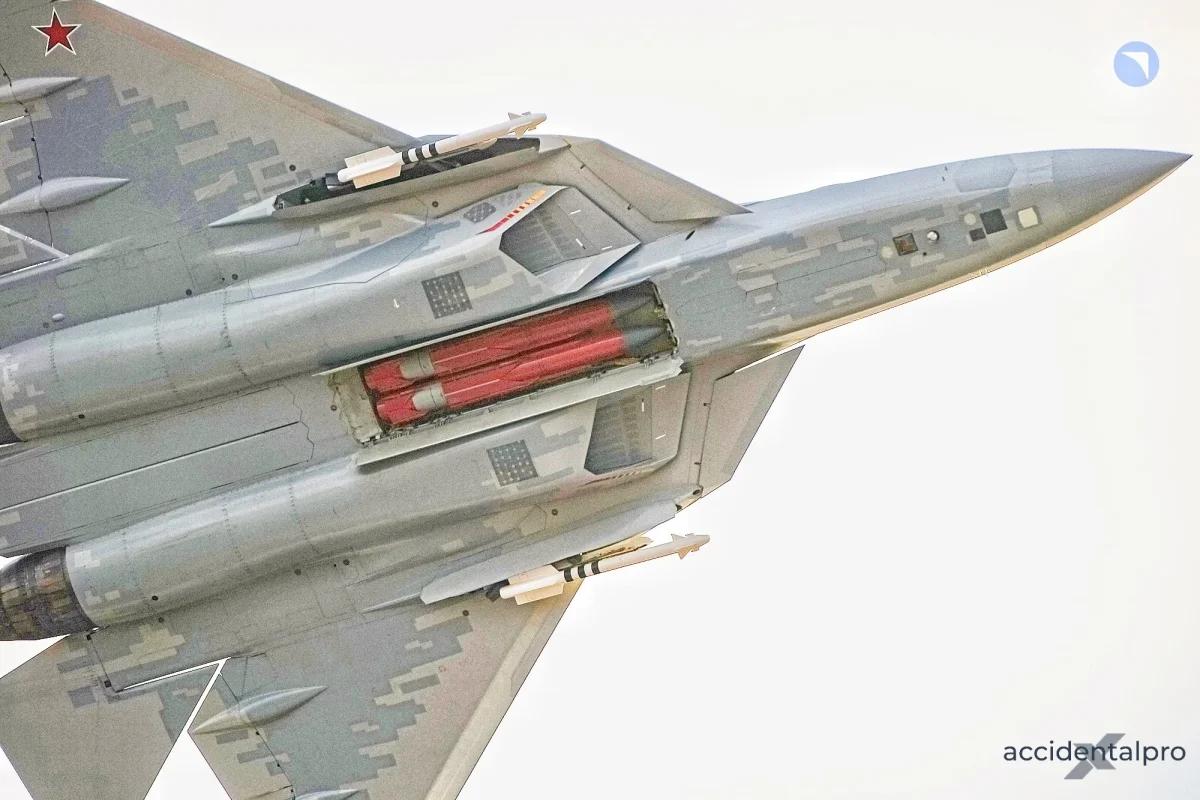

We see that IWBs of both F-22 & Su-57 have some disadvantage.
Su-57 carries only 4 AAMs currently, may be 6 in future.
F-22 cannot carry weapon bigger than JDAM currently. MLU might add something.

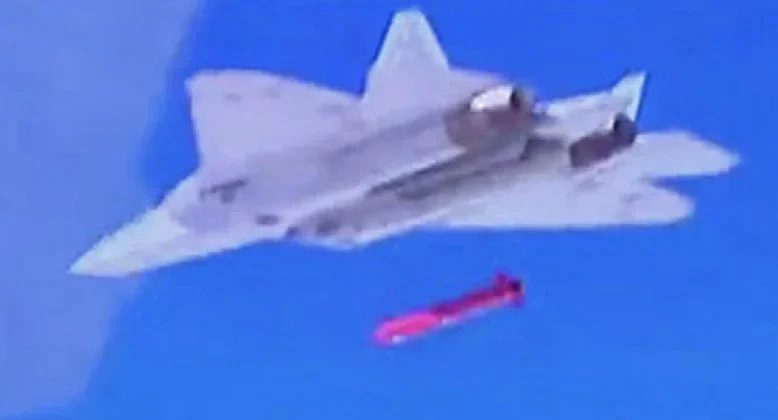

Su-57 can carry cruise missle, Kh-58UShKE internally.


A bigger collage shows some current weapons fit, some don't.

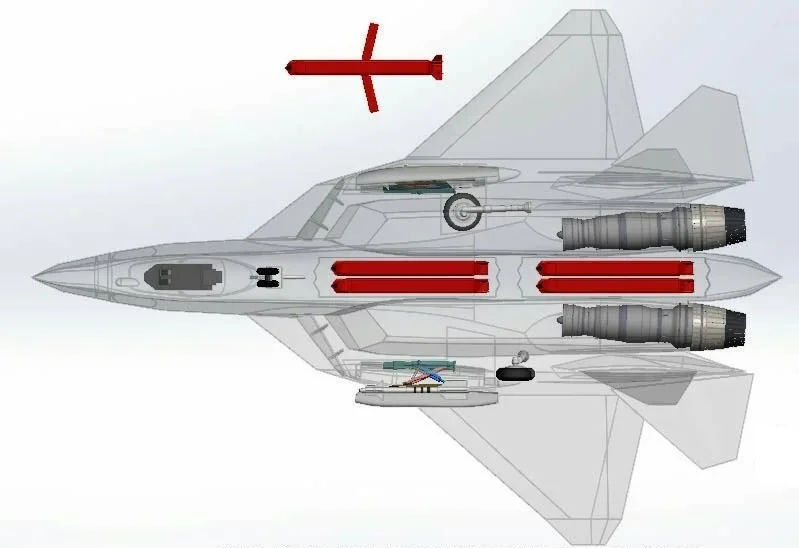

A new jet can combine both capability by having multiple IWBs. the centerline IWB will carry customized CrM, AShM, ARM, etc.
And 2 parallel IWBs can carry 2 AAMs each, total 4.

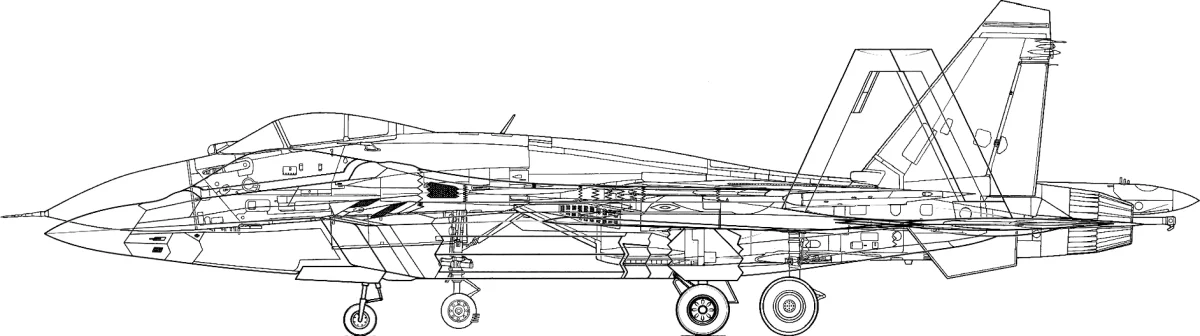

If we imagine a modified diagram of Su-57 & F-22 then it would look like following:
NOTE - This is just preliminary & notional, otherwise the engines & internal components will obviously have to be adjusted.


The following is 1 of the many examples already created by CAD artist Rodrigo Avella in his vision of F/A-XX :
The IWB bottom edge would be wider than F-22.

However, these efforts cannot resolve the underlying problem in the SU-57- it has a longitudinal position of the internal compartments and weakening of the structure. Regards...

However, these efforts cannot resolve the underlying problem in the SU-57- it has a longitudinal position of the internal compartments and weakening of the structure. Regards...
No, i'm not suggesting anything to enhance or solve anything in those 2 jets. It is just a notional representation of what people may desire in a future jet like more power, more payload, etc.

The strength issue was known to the Russians at the outset itself, that's one reason why the Su-57 had to undergo long testing. Some Russian aerospace commentators mentioned it openly. With newer materials and additive technology progressing the way it does, structural integrity can be enhanced. In any case, the aircraft is only a platform, an important consideration, do doubt, but it's the quality of sensors, networking and weapons etc., that matter. The Russians seem to have found adequate solutions for the Su-57. It can only improve.

The strength issue was known to the Russians at the outset itself, that's one reason why the Su-57 had to undergo long testing. Some Russian aerospace commentators mentioned it openly. With newer materials and additive technology progressing the way it does, structural integrity can be enhanced. In any case, the aircraft is only a platform, an important consideration, do doubt, but it's the quality of sensors, networking and weapons etc., that matter. The Russians seem to have found adequate solutions for the Su-57. It can only improve.
So what's the next gen successor of Su-57 to counter NGAD?

A preliminary look into engine requirement of AHCA concept:
The JV can be a great opportunity only if we develop 2 engines - 1 regular turbofan for medium jets & 1 VCE for next gen heavy class jet bcoz EU is also developing it.
Among IWB jets, F-22 has highest capacity of 8 AAMs of around 1.1 tons & total STOW or stealthy take-off weight (not MTOW) of around 29 tons.
Su-57 & J-20 stealthy STOW are identical around 29-30 tons.
In my concept if i add more internal AAMs or remove 2 BVR-AAMs & add 2 custom design AShM, ARM like in class of following weapons -
- AGM-158 JASSM (2x1 ton) or LRASM (2x1.2 tons),
- or 4 NSM/JSM (4x416 Kg)
- or 4 AGM-154 JSOW (4x500 Kg)
- or 4 AGM-88G AARGM-ER (4x360 Kg)
- or customized Rudram (2/4)
then the STOW adds 2 more tons & reaches 31-32 tons.


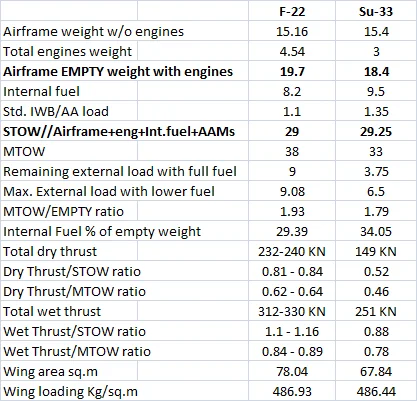

F-22's wet T/STOW = 2x(156-165 KN) /9.8 /29 tons = 1.1 to 1.16
Su-57's wet T/STOW = 2x(142.2 KN) /9.8 /29.27 tons = 1
J-20's wet T/STOW with claimed thrust of WS-15 = 2x(171-191 KN) /9.8 /30.21 tons = 1.15 to 1.3

So we see that different makers/countries have different opinion on sufficient TWR.
Let's consider minimum wet T/STOW = 1.15.
To maintain that TWR, thrust/engine required= (31-32 tons x 1.15 x 9.8)/2 = 175 - 180 KN wet, what JV should also target.
Meanwhile the R&D & prototyping can continue using existing engines like AL-41 or AL-31.
